Sand separators are crucial components in various industries, including oil and gas, water treatment, and manufacturing. They are designed to remove solid particles, such as sand, dirt, and scale, from liquid streams. Here are some common types of sand separators:

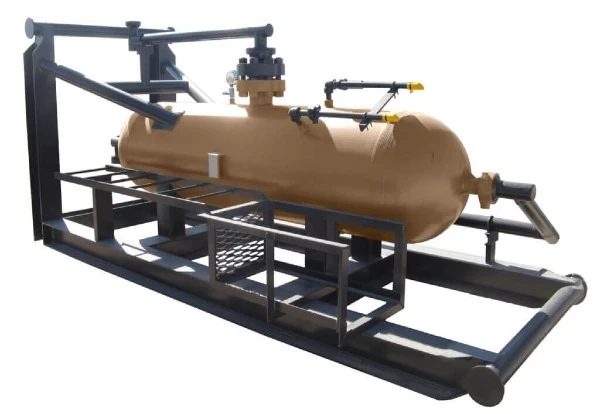

Pictured above: Horiznotal Sand-Separator-Sand-Trap-

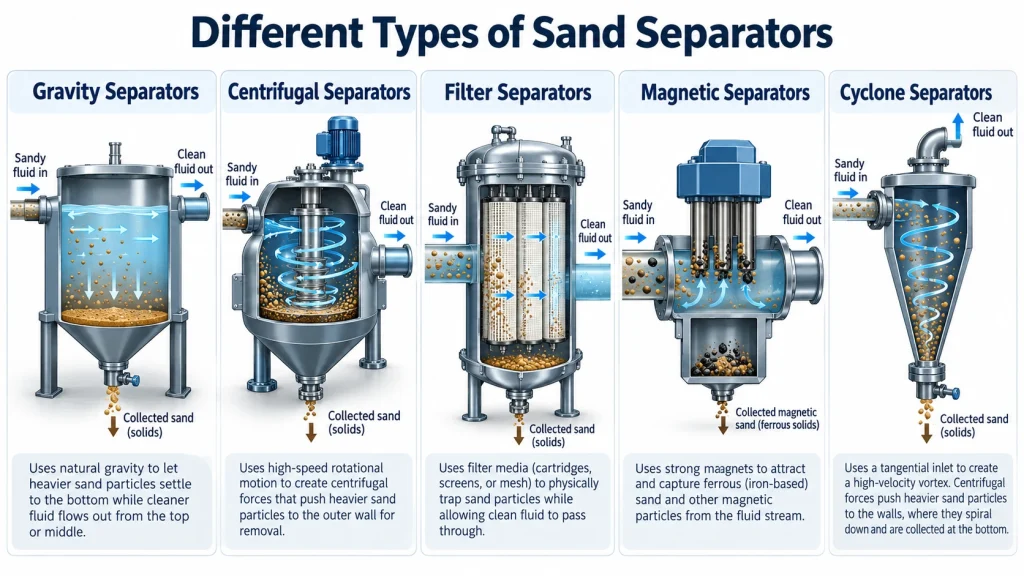

- Vertical Gravity Separators: These separators utilize gravity to settle solid particles to the bottom of a tank. The separated sand can then be periodically removed.
- Inclined Plate Separators: These separators use inclined plates to increase the settling area and improve separation efficiency.
- Hydrocyclones: These separators use centrifugal force to separate solid particles from the liquid stream. The high-speed rotation forces the heavier particles to the outer wall, where they are collected.
- Disc Stack Centrifuges: These separators use a stack of discs to increase the separation surface area. The centrifugal force generated by the rotating discs separates the solid particles from the liquid.
- Bag Filters: These filters use bags made of a porous material to trap solid particles.
- Cartridge Filters: These filters use replaceable cartridges to remove solid particles.
- Membrane Filters: These filters use a membrane to separate particles based on size.
- Magnetic Drum Separators: These separators use a rotating drum with magnetic surfaces to attract and remove magnetic particles from the liquid stream.
- High-Gradient Magnetic Separators: These separators use a strong magnetic field to attract and remove even very fine magnetic particles.
- Gas Cyclones: These separators use centrifugal force to separate solid particles from a gas stream.
- Liquid Cyclones: These separators use centrifugal force to separate solid particles from a liquid stream.
The choice of sand separator depends on various factors, including the type and size of particles to be removed, the flow rate of the liquid, the desired level of separation efficiency, and the specific application requirements.
By understanding the different types of sand separators and their operating principles, you can select the most appropriate solution for your specific needs.
