Horizontal Three-Phase Separator with Oil Bucket and Water Weir
A three-phase separator is a crucial piece of equipment in the oil and gas industry, designed to separate a mixture of oil, gas, and water into its individual components. A Horizontal Three-Phase Separator with Oil Bucket and Water Weir, is a particularly efficient design for handling a wide range of flow rates and liquid-gas ratios.

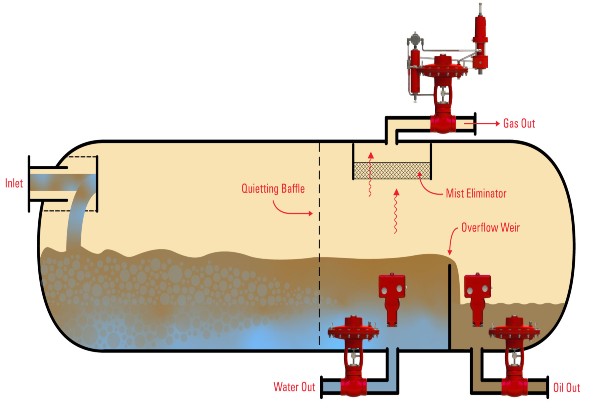

Pictured above: Illustration of a Horizontal Three-Phase Separator with Oil Bucket and Water Weir Design
The Role of the Oil Bucket and Water Weir
- Oil Bucket: The oil bucket is a compartment within the separator that collects the separated oil. It is designed to maintain a specific oil level, preventing oil from being carried over into the water outlet.
- Water Weir: The water weir is a physical barrier that controls the liquid level in the water section of the separator. It ensures that the water level is maintained at an appropriate level, preventing water from being carried over into the oil or gas outlets.
How Does it Work?
- Inlet: The mixture of oil, gas, and water enters the separator.
- Separation: As the mixture enters the vessel, the heavier liquids (oil and water) settle to the bottom, while the lighter gas rises to the top.
- Oil Separation: The separated oil flows into the oil bucket, where it is collected and drawn off through the oil outlet.
- Water Separation: The water, which is heavier than the oil, flows over the water weir and into the water outlet.
- Gas Outlet: The separated gas exits through the gas outlet at the top of the separator.
Pictured above: Illustration of a Horizontal Three-Phase Separator with Oil Bucket and Water Weir Design
Advantages of Horizontal Three-Phase Separators with Oil Bucket and Water Weir
- Efficient Separation: The combination of the oil bucket and water weir ensures efficient separation of oil, gas, and water.
- Reduced Liquid Carryover: The oil bucket and water weir help to minimize liquid carryover into the gas outlet, improving gas quality.
- Improved Liquid-Liquid Separation: The horizontal design provides a larger liquid-liquid interface, promoting efficient separation of oil and water.
- Flexibility: Can be customized to accommodate various flow rates, pressures, and liquid-gas ratios.
Key Considerations for Design and Operation
- Separator Size: The separator must be adequately sized to handle the expected flow rates and liquid-gas ratios.
- Oil Bucket and Water Weir Design: The oil bucket and water weir should be designed to maintain the desired liquid levels and prevent liquid carryover.
- Inlet and Outlet Nozzles: The inlet and outlet nozzles should be properly sized and positioned to minimize turbulence and maximize separation efficiency.
- Internal Components: The internal components, such as baffles and mist eliminators, should be designed to optimize separation and minimize pressure drop.
- Maintenance: Regular maintenance is essential to ensure optimal performance and prevent equipment failures.
By understanding the principles of operation and the key design considerations, engineers can select and design horizontal three-phase separators with oil buckets and water weirs to meet the specific needs of oil and gas production facilities.
