Understanding The Basics
A three-phase separator is a crucial piece of equipment in the oil and gas industry, designed to separate a mixture of oil, gas, and water into its individual components. The horizontal three-phase separator, equipped with an overflow weir, is a particularly efficient design for handling high liquid flow rates and liquid slugs.

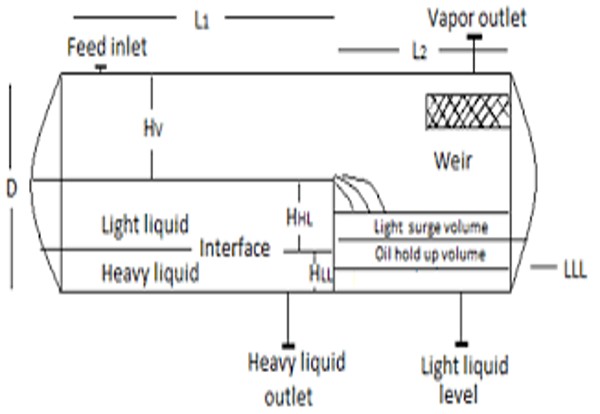

Pictured above: Separator with a Weir Plate
The Role Of The Overflow Weir
An overflow weir is a critical component within a horizontal separator. It’s a physical barrier that controls the liquid level in the vessel. When the liquid level rises above a certain point, the excess liquid flows over the weir and into the water outlet. This ensures that the separator operates efficiently and prevents liquid carryover into the gas outlet.
How Does It Work?
- Inlet: The mixture of oil, gas, and water enters the separator.
- Separation: As the mixture enters the vessel, the heavier liquids (oil and water) settle to the bottom, while the lighter gas rises to the top.
- Liquid Level Control: The overflow weir maintains the liquid level in the vessel. When the level rises above the weir, excess liquid flows into the water outlet.
- Gas Outlet: The separated gas exits through the gas outlet at the top of the separator.
- Oil and Water Separation: The oil and water, which have settled at the bottom, are separated based on their specific gravities. The lighter oil layer is drawn off through the oil outlet, while the heavier water is removed through the water outlet.
Pictured above: Separator with a Weir Plate
Advantages of Horizontal Three-Phase Separators with Overflow Weir
- Efficient Liquid-Liquid Separation: The horizontal design provides a larger liquid-liquid interface, promoting efficient separation of oil and water.
- Effective Handling of Liquid Slugs: The overflow weir helps to prevent liquid carryover into the gas outlet, even during periods of high liquid flow rates or liquid slugs.
- Lower Pressure Drop: The longer horizontal path reduces pressure loss across the separator.
- Flexibility: Can be customized to accommodate various flow rates, pressures, and liquid-gas ratios.
Key Considerations for Design and Operation
- Separator Size: The separator must be adequately sized to handle the expected flow rates and liquid-gas ratios.
- Weir Height: The weir height should be carefully designed to maintain the desired liquid level and prevent excessive liquid carryover.
- Inlet and Outlet Nozzles: The inlet and outlet nozzles should be properly sized and positioned to minimize turbulence and maximize separation efficiency.
- Internal Components: The internal components, such as baffles and mist eliminators, should be designed to optimize separation and minimize pressure drop.
- Maintenance: Regular maintenance is essential to ensure optimal performance and prevent equipment failures.
By understanding the principles of operation and the key design considerations, engineers can select and design horizontal three-phase separators with overflow weirs to meet the specific needs of oil and gas production facilities.
Pictured above: Separator with a Weir Plate
